Rim Fractures

See other failures under 000.html.

Rim fractures.

Service history of parts is unknown. Collected from customer bikes by Aaron's Bicycle Repair.

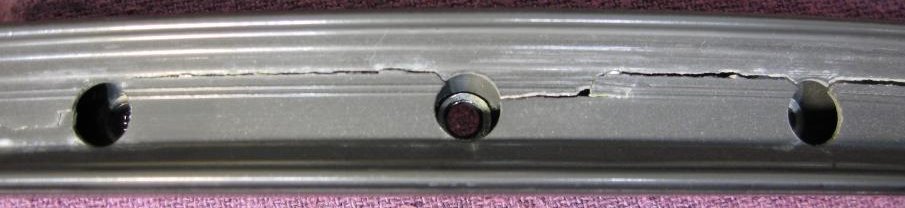

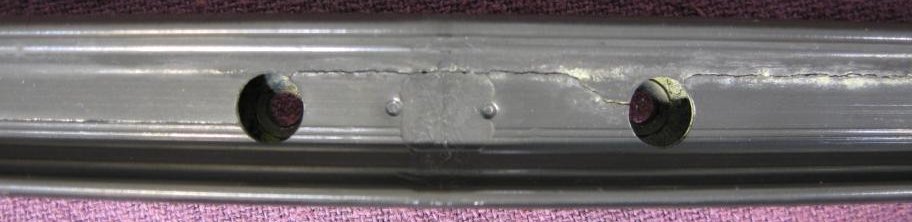

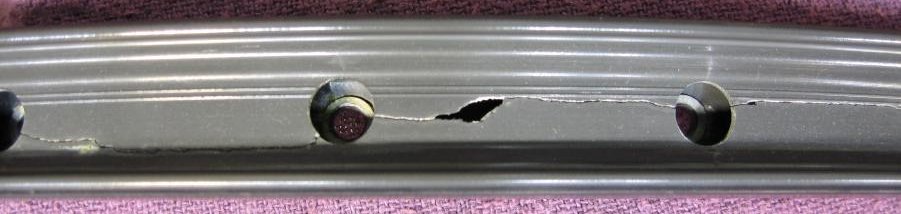

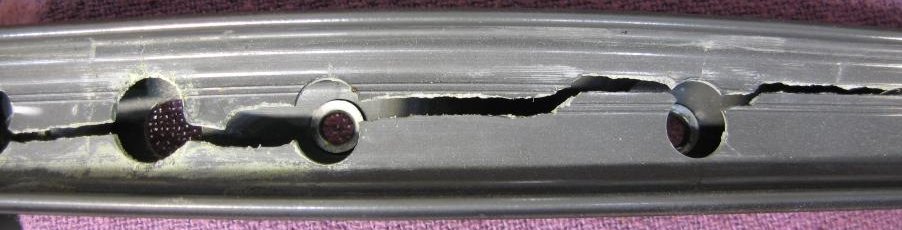

First rim: Mavic 517 CD with ceramic-coated brake track, so brake track wear is less often a limiting factor in service life. Tube bed is cracked around nearly the whole circumference.

[X]   [X]   [X]   [X]

Cracking is widest near valve hole. Rim was ridden about 200-300km after first noticed brake rubbing (due to spreading of sidewalls from loss of support of the tube bed).

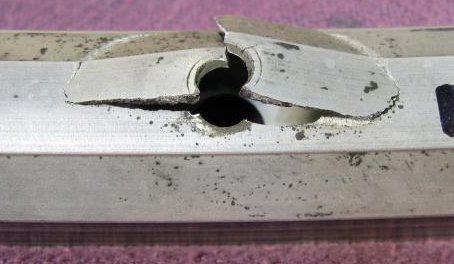

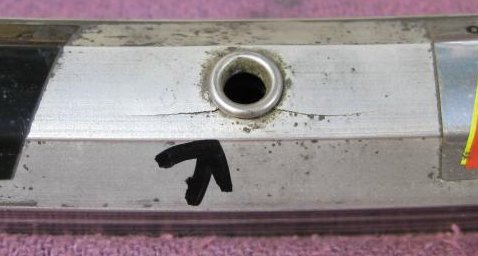

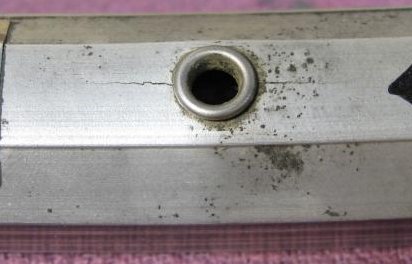

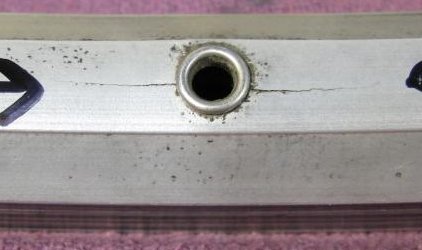

Second rim: Mavic 517 SUP UB single-eyelet rim with cracking around many eyelets in the rim's spoke bed.

[X]   [X]   [X]   [X]

See also FAIL-080.html
