MOBI > CODA 502M Crank

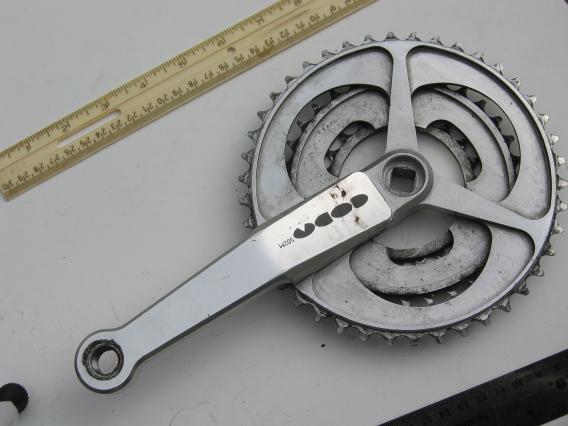

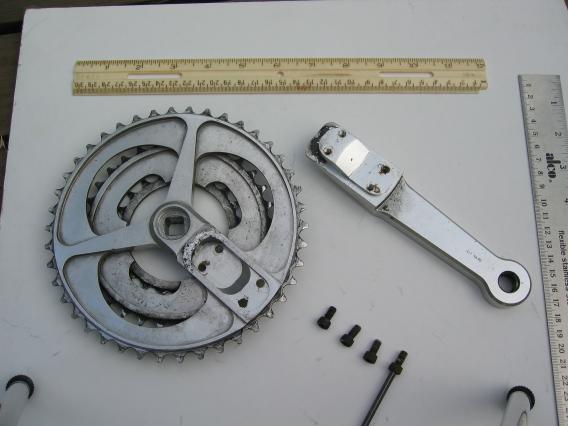

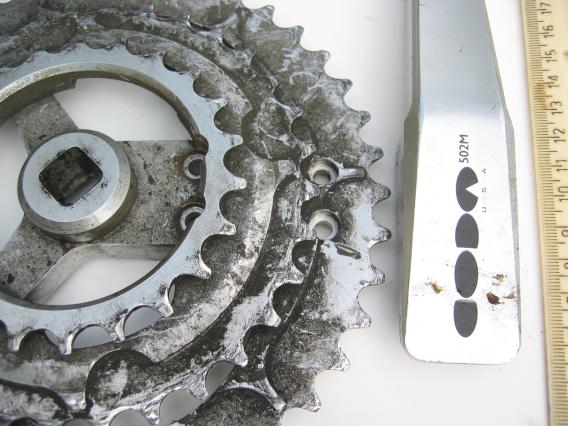

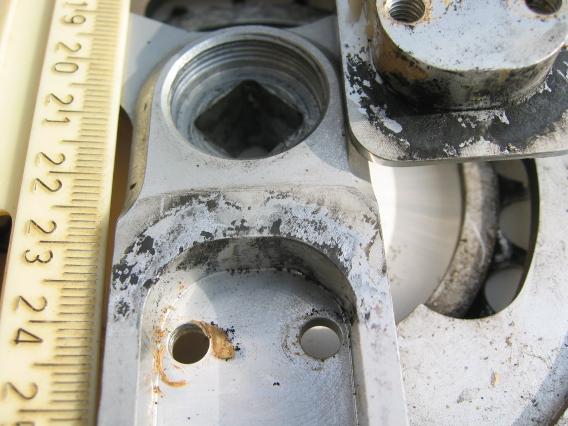

The CODA 502M crank is two parts. One part is a square taper and three chainrings. The second part is a short arm with pedal eye.

i3550.025.jpg   i3540.025.jpg   i3543.025.jpg   i3545.025.jpg

Two-piece construction potentially eliminates fasteners, allows flexibility in arm shape, and potentially makes for a light crank. However, the 502M crank is not especially light, and suffers from at least three serious disadvantages:

These problems were easily forseen when the crank was introduced. When you consider buying new designs, you may want to take a few minutes to reflect on long-term ownership. The owner of this crank apparently did not, and was displeased that replacing a worn chainring would have cost US$40 on another crank, but here required purchase of either a new three-sprocket unit costing over US$150, or new US$120 crank and chainrings from another maker — better, but still a lot more than just a worn chainring.


According to VeloBase, Colnago made 5 custom cranks (year unknown) for a time trial bicycle raced by Tony Rominger. These cranks are one piece with the chainrings. This "disposable" construction is understandable for "at any price" racing, but make no sense for bicycles in ordinary use.
